除泥器

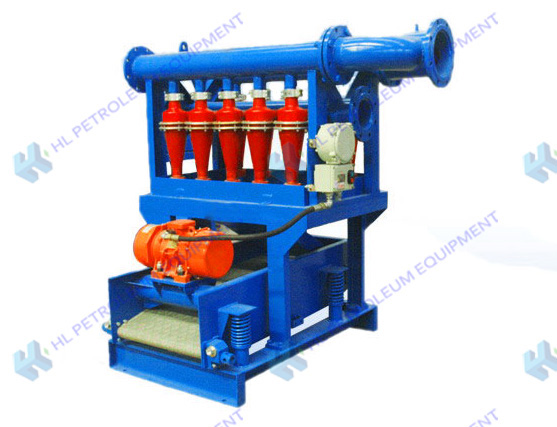

Product name：Desilter Item：HCN100 Details： HCN100 Desilter is the third class solids control equipment of drilling-fluid solid control system. The design of desilter cyclones are based on the centrifuge-setting principle of particles. The separating drilling fluid goes into the cyclone along its inner-wall at a certain pressure and speed made by the pump. The great particles are going down spirally along the inner-wall of the cyclone at the centrifugal force and the gravity , then running out through the underset nozzle and falling down on the small mush shale shaker for further separation . The other fluid goes up along the centre of the cyclone, and goes into the firth class separating equipment –centrifuge for further separating. Technical parameters 1. Cyclone diameter 100mm 2. Amount of cyclones 10 3. Inlet diameter 150mm 4. Overflow pipe diameter 200mm 5. Separation scale 15μm 6. Pressure 0.20-0.40Mpa 7. Processing capacity (max.): 180 m3/h 8. Motor power of shale shaker 0.5kW 9. Supporting power of sand pump: 55kw 10. Overall diameter 1465×1160×1800mm

-
