三甲氧基环硼氧烷(102-24-9)核磁图(¹HNMR)

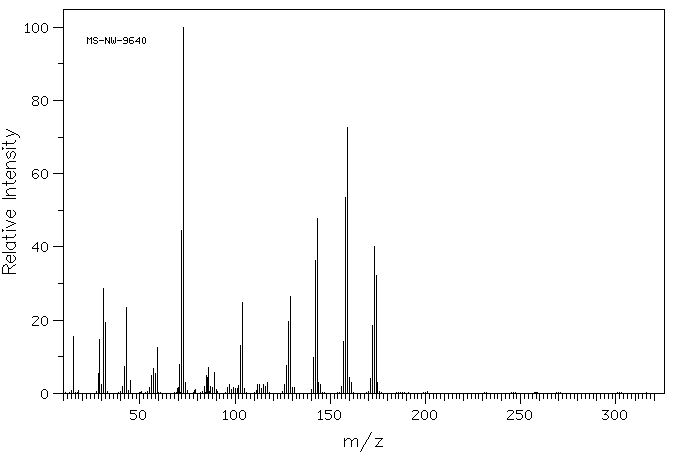

Mass

MS-NW-9640
trimethoxyboroxin
C3H9B3O6            (Mass of molecular ion:    174)

   Source Temperature: 260 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0      15.4
      28.0       5.4
      29.0      14.6
      30.0       2.4
      31.0      28.7
      32.0      19.4
      41.0       2.0
      42.0       7.3
      43.0      23.5
      45.0       3.4
      55.0       1.5
      56.0       4.8
      57.0       6.7
      58.0       5.4
      59.0      12.6
      70.0       1.3
      70.5       1.6
      71.0       7.9
      72.0      44.5
      73.0     100.0
      74.0       2.9
      79.0       1.0
      84.0       2.0
      85.0       4.8
      85.5       4.2
      86.0       7.2
      87.0       2.0
      88.0       1.6
      89.0       5.8
      90.0       1.0
      96.0       1.5
      97.0       2.3
      98.0       1.1
      99.0       1.6
     100.0       1.3
     101.0       1.2
     102.0       2.1
     103.0      13.0
     104.0      24.8
     105.0       1.3
     112.0       2.3
     113.0       2.5
     114.0       1.2
     115.0       2.4
     116.0       1.9
     117.0       2.9
     126.0       2.3
     127.0       7.5
     128.0      19.7
     129.0      26.5
     130.0       1.6
     131.0       1.6
     140.0       1.1
     141.0       9.8
     142.0      36.3
     143.0      47.9
     144.0       2.9
     145.0       2.4
     156.0       1.9
     157.0      14.1
     158.0      53.4
     159.0      72.6
     160.0       4.2
     161.0       2.9
     171.0       4.0
     172.0      18.6
     173.0      40.2
     174.0      32.2
     175.0       3.1
