甘氨酰-DL-丝氨酸(687-38-7)红外图谱(IR1)

Mass

MS-NW-1877

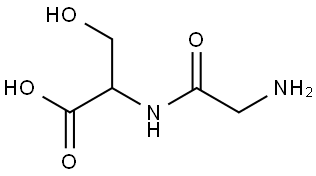

glycyl-DL-serine
C5H10N2O4           (Mass of molecular ion:    162)

   Source Temperature: 220 °C
   Sample Temperature: 200 °C
   Direct, 75 eV

      14.0       1.7
      15.0       8.6
      16.0       3.5
      17.0       7.9
      18.0      36.5
      19.0       1.0
      26.0       1.8
      27.0       6.0
      28.0      50.5
      29.0      17.1
      30.0      87.1
      31.0      11.5
      32.0       1.6
      39.0       1.2
      40.0       2.9
      41.0       8.3
      42.0      26.3
      43.0      10.9
      44.0      25.4
      45.0       2.5
      46.0       2.3
      54.0       1.6
      55.0       5.4
      56.0       4.9
      57.0      22.9
      58.0       4.5
      59.0       3.1
      60.0      26.2
      68.0       1.1
      69.0       3.7
      70.0       2.7
      71.0       4.0
      72.0       1.5
      73.0       3.0
      74.0      13.7
      75.0       7.6
      83.0       1.8
      84.0       1.2
      85.0      19.3
      86.0       4.4
      97.0       1.5
      98.0       1.8
      99.0       1.6
     101.0       1.4
     113.0       3.4
     114.0     100.0
     115.0       5.8
     126.0       3.8
