N-(2,4-DINITROPHENYL)GLYCINE(1084-76-0) MS

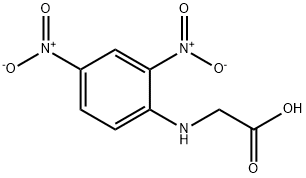

Product NameN-(2,4-DINITROPHENYL)GLYCINE
CAS1084-76-0
Molecular FormulaC8H7N3O6
Molecular Weight241.16
InChIInChI=1S/C8H7N3O6/c12-8(13)4-9-6-2-1-5(10(14)15)3-7(6)11(16)17/h1-3,9H,4H2,(H,12,13)
InChIKey RQPREKYEHBAOAR-UHFFFAOYSA-N
SmilesC(O)(=O)CNC1=CC=C([N+]([O-])=O)C=C1[N+]([O-])=O
-
MassMS-NW-2147 N-(2,4-dinitrophenyl)glycine C8H7N3O6 (Mass of molecular ion: 241)
Source Temperature: 190 °C Sample Temperature: 170 °C Direct, 75 eV
16.0 1.2 17.0 3.2 18.0 17.2 26.0 1.1 27.0 3.4 28.0 8.0 29.0 2.2 30.0 9.3 31.0 1.2 37.0 1.5 38.0 3.4 39.0 4.9 40.0 1.4 41.0 1.7 42.0 1.7 43.0 3.2 44.0 27.5 45.0 2.3 50.0 6.2 51.0 9.1 52.0 7.0 53.0 2.7 58.0 1.0 60.0 1.6 61.0 1.6 62.0 4.8 63.0 10.4 64.0 5.6 65.0 6.1 66.0 4.1 67.0 1.2 74.0 4.2 75.0 9.0 76.0 11.2 77.0 13.2 78.0 12.7 79.0 3.3 80.0 3.0 88.0 1.0 89.0 1.4 90.0 6.6 91.0 6.2 92.0 9.2 93.0 3.9 94.0 1.9 102.0 1.9 103.0 5.4 104.0 14.0 105.0 9.0 106.0 2.6 107.0 1.8 108.0 2.9 116.0 2.2 117.0 6.2 118.0 1.6 119.0 5.1 120.0 4.2 121.0 3.0 122.0 4.1 133.0 6.8 134.0 2.3 137.0 1.9 138.0 2.8 149.0 5.4 150.0 12.8 151.0 1.3 153.0 1.7 163.0 12.0 164.0 2.1 165.0 2.1 166.0 4.7 167.0 3.2 178.0 1.2 179.0 12.6 180.0 3.9 183.0 2.9 184.0 1.4 195.0 1.3 196.0 100.0 197.0 8.8 198.0 1.1 241.0 25.6 242.0 2.8
KBr disc
nujol mull
