128-69-8

3,4,9,10-Perylenetetracarboxylic dianhydride(128-69-8) IR1

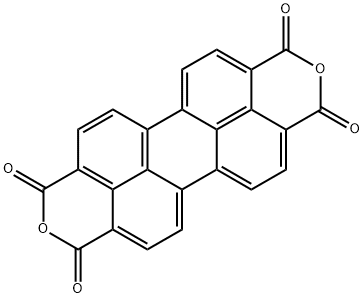

Product Name3,4,9,10-Perylenetetracarboxylic dianhydride

Molecular FormulaC24H8O6

Molecular Weight392.32

InChIInChI=1S/C24H8O6/c25-21-13-5-1-9-10-2-6-15-20-16(24(28)30-23(15)27)8-4-12(18(10)20)11-3-7-14(22(26)29-21)19(13)17(9)11/h1-8H

InChIKey CLYVDMAATCIVBF-UHFFFAOYSA-N

SmilesC1(=O)OC(=O)C2=CC=C3C4=C2C1=CC=C4C1=C2C4=C(C=C1)C(=O)OC(=O)C4=CC=C32

Request For Quotation

¹HNMR

IR1

3,4,9,10-Perylenetetracarboxylic dianhydride(128-69-8) IR1
Mass

MS-NW-8123
3,4,9,10-perylenetetracarboxylic dianhydride
C24H8O6             (Mass of molecular ion:    392)

   Source Temperature: 230 °C
   Sample Temperature: 340 °C
   Direct, 75 eV

      18.0       3.1
      28.0       2.0
      44.0       2.1
      74.0       1.1
      82.5       1.8
      86.0       1.0
      98.0       2.0
      99.0       1.1
     110.0       1.0
     111.0       4.4
     117.5       1.7
     118.0       1.4
     122.0       1.3
     123.0      12.7
     123.5      11.5
     124.0      32.9
     124.5       7.1
     138.0       3.6
     146.0       2.1
     152.0       8.4
     152.5       1.9
     174.0       2.6
     196.0       1.4
     221.0       1.3
     222.0       2.3
     235.0       2.2
     236.0       1.6
     245.0       1.6
     246.0      11.3
     247.0      12.7
     248.0      44.9
     249.0       9.6
     250.0       1.1
     276.0      13.3
     277.0       3.0
     304.0       4.3
     305.0       1.0
     319.0       1.2
     320.0      26.1
     321.0       6.3
     322.0       1.0
     348.0      48.2
     349.0      12.2
     350.0       1.9
     391.0       1.6
     392.0     100.0
     393.0      26.0
     394.0       4.6
