14804-32-1

2-乙基苯甲醚(14804-32-1)核磁图(¹HNMR)

产品名称:2-乙基苯甲醚

CAS:14804-32-1

分子式:C9H12O

分子量: 136.19

InChI:InChI=1S/C9H12O/c1-3-8-6-4-5-7-9(8)10-2/h4-7H,3H2,1-2H3

InChIKey: NIEHEMAZEULEKB-UHFFFAOYSA-N

Smiles:C1(CC)=CC=CC=C1OC

¹HNMR

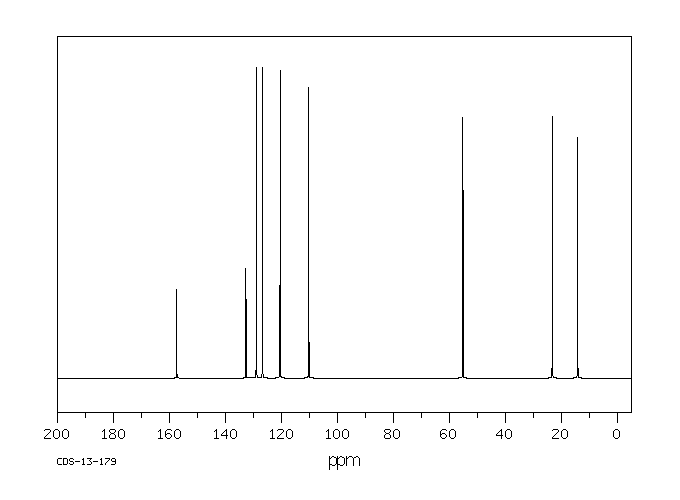

¹³CNMR

Mass

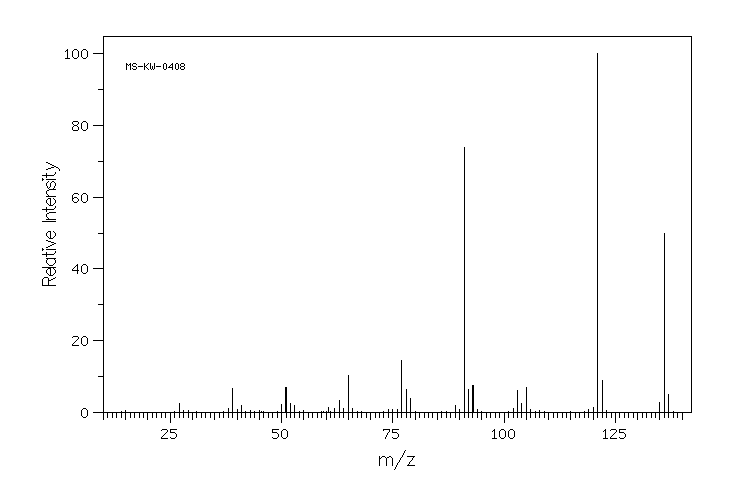

MS-KW-0408
2-ethylanisole
C9H12O              (Mass of molecular ion:    136)

   Source Temperature: 260 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      27.0       2.5
      38.0       1.0
      39.0       6.6
      41.0       1.9
      50.0       2.3
      51.0       6.8
      52.0       2.5
      53.0       1.9
      60.5       1.2
      62.0       1.0
      63.0       3.4
      64.0       1.1
      65.0      10.3
      66.0       1.0
      77.0      14.4
      78.0       6.4
      79.0       3.9
      89.0       1.9
      91.0      73.9
      92.0       6.3
      93.0       7.6
     102.0       1.0
     103.0       6.0
     104.0       2.5
     105.0       7.0
     120.0       1.3
     121.0     100.0
     122.0       8.9
     135.0       2.6
     136.0      49.9
     137.0       5.0

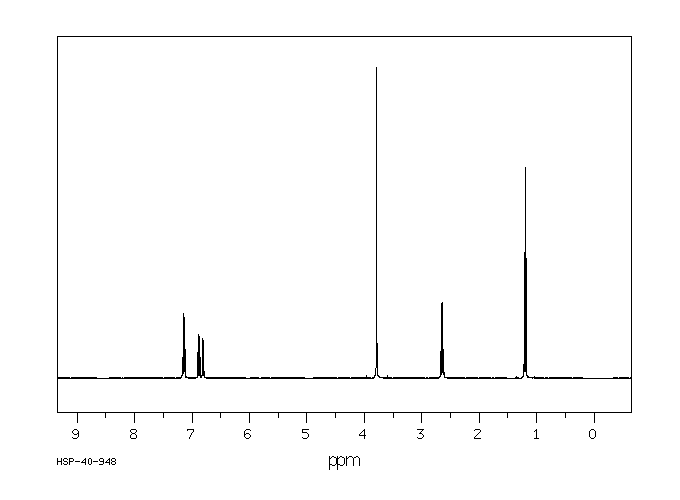

400 MHz in CDCl3

¹H NMR	399.65 MHz
C₉H₁₂O	0.05 ml : 0.5 ml CDCl₃
2-ethylanisole

    Assign.     Shift(ppm)

     A           7.15
     B           7.13
     C           6.876
     D           6.805
     E           3.779
     F           2.637
     G           1.188

     Hz     ppm     Int.

   2865.24   7.167     52
   2863.53   7.163     66
   2857.67   7.149     85
   2855.47   7.143    208
   2848.03   7.124    195
   2843.76   7.114     22
   2756.35   6.895     84
   2755.25   6.892     89
   2748.91   6.876    140
   2747.81   6.874    136
   2741.46   6.858     64
   2740.36   6.855     66
   2724.13   6.815    129
   2716.07   6.794    122
   1517.83   3.797     19
   1517.34   3.796     23
   1510.38   3.778   1000
   1065.31   2.665     88
   1057.87   2.647    242
   1050.30   2.628    245
   1042.73   2.609     93
    482.18   1.207    405
    474.61   1.188    678
    467.05   1.169    386

in CDCl3
