4,7-Bis(2-bromo-5-thienyl)-2,1,3-benzothiadiazole synthesis
- Product Name:4,7-Bis(2-bromo-5-thienyl)-2,1,3-benzothiadiazole
- CAS Number:288071-87-4
- Molecular formula:C14H6Br2N2S3
- Molecular Weight:458.21
M4 (0.07 g, 0.233 mmol) was dissolved in 3.3 mLdry CHCl3 followed by addition of NBS (0.87 g, 0.489 mmol) at 0 °C.The reaction was conducted in dark by covering the flask withaluminium foil. The product was extracted with CHCl3 and thesolvent was evaporated to obtain crude product which was purifiedby silica gel column chromatography using 5% ethyl acetate/hexaneas eluent to obtain M5 as bright orange solid (0.101 g, 95%). Meltingpoint = 258 °C.
![4,7-Bis(thiophen-2-yl)benzo[c][1,2,5]thiadiazole](/CAS/20150408/GIF/165190-76-1.gif)
165190-76-1
99 suppliers
$40.00/250mg
288071-87-4
144 suppliers
$45.00/1mg
Yield:288071-87-4 95%
Reaction Conditions:
with NBS in chloroform at 0;Darkness;
Steps:
2.2.1.5. Synthesis of 4,7-bis(5-bromothiophen-2-yl)benzo[c][1,2,5]thiadiazole(M5).
M4 (0.07 g, 0.233 mmol) was dissolved in 3.3 mLdry CHCl3 followed by addition of NBS (0.87 g, 0.489 mmol) at 0 °C.The reaction was conducted in dark by covering the flask withaluminium foil. The product was extracted with CHCl3 and thesolvent was evaporated to obtain crude product which was purifiedby silica gel column chromatography using 5% ethyl acetate/hexaneas eluent to obtain M5 as bright orange solid (0.101 g, 95%). Meltingpoint = 258 °C. 1HNMR (300 MHz, CDCl3) d: 7.85(s, 2H), 7.80(d, 2H),7.13(d, 2H) [29] (see Scheme 5).
References:
Sharma, Bhavna;Alam, Firoz;Dutta, Viresh;Jacob, Josemon [Organic electronics,2017,vol. 40,p. 42 - 50]
15155-41-6
326 suppliers
$21.00/1g
288071-87-4
144 suppliers
$45.00/1mg
165190-76-1
99 suppliers
$40.00/250mg
![4-(5-bromothiophen-2-yl)-7-(thiophen-2-yl)benzo[c][1,2,5]thiadiazole](/CAS/20180703/GIF/1093862-55-5.gif)
1093862-55-5
3 suppliers
inquiry
288071-87-4
144 suppliers
$45.00/1mg
22706-22-5
13 suppliers
inquiry
288071-87-4
144 suppliers
$45.00/1mg
1003-09-4
489 suppliers
$10.00/25g

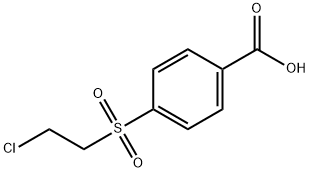

![Benzoic acid, 4-[(2-chloroethyl)sulfonyl]-](/CAS/20210111/GIF/17918-95-5.gif)
